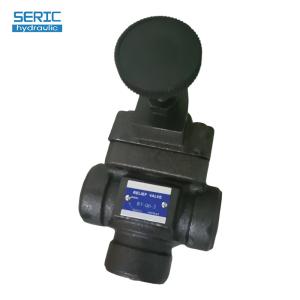

BT-06 Pilot Operated Relief Valve with Remote Control Function

Name: BT06 Pilot Operated Relief Valve with Remote Control Function
Brand: Seric
Price: 1 USD

Quality BT-06 Pilot Operated Relief Valve with Remote Control Function for sale

Brand Name : Seric

Model Number : BT Series

Certification : CE, ISO

Place of Origin : Guangzhou, China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T,L/C,Western Union

Supply Ability : 5000

Delivery Time : 1-15 days

Packaging Details : Carton Box/Wooden Case

After Warranty Service : Online Support

OEM : Accept

Condition : 100% Brand-new

Quality : High-Quality

Application : Industrial Machinery

Selling Units : Single item

Contact Now

Pilot Operated Relief Valve BG-06

Features

These valves safeguard hydraulic systems by relieving excess pressure and can also be used to maintain consistent system pressure. Remote control and unloading functions are enabled through the use of vent ports.

Specifications

Model Numbers		Max. Operating Pressure MPa (PSI)	Pres. Adj. Range MPa (PSI)	Max. Flow L/min (U.S.GPM)	Approx. Mass kg (lbs.)
Threaded Connection	Sub-plate Mounting	Max. Operating Pressure MPa (PSI)	Pres. Adj. Range MPa (PSI)	Max. Flow L/min (U.S.GPM)	BT type	BG type
BT-03-*-32	BG-03-*-32	25 (3630)	Note) ★25 (★-3630)	100 (26.4)	5.0 (11.0)	4.7 (10.4)
BT-06-*-32	BG-06-*-32			200 (52.8)	5.0 (11.0)	5.6 (12.3)
BT-10-*-32	BG-10-*-32			400 (106)	8.5 (18.7)	8.7 (19.2)

Model Number Designation

F-	B	T	–03	–V	–40	*
Special Seals	Series Number	Type of Mounting	Valve Size	High Venting Pres. Feature	Design Number	Design Standards
F: Special Seals for Phosphate Ester Type Fluids (Omit if not required)	B:Pilot Operated Relief Valves	T:Threaded Connection	03	V:For High Venting Pressure Feature(Omit if not required)	32	None: Japanese Std."JIS" 80: European Design Std. 90: N.American Design Std.
			06		32
			10		32
		G:Sub-plate Mounting	03		32	None: Japanese Std."JIS" and European Design Std. 90: N.American Design Std.
			06		32
			10		32

★Use high venting pressure type to reduce the response time from unload to onload.
