PV2R Series PV2R1 Single Vane Pumps High-performance Pump

Name: PV2R Series PV2R1 Single Vane Pumps Highperformance Pump
Brand: Seric
Price: 1 USD

Quality PV2R Series PV2R1 Single Vane Pumps High-performance Pump for sale

Brand Name : Seric

Model Number : PV2R Series

Certification : CE, ISO

Place of Origin : Guangzhou, China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T,L/C,Western Union

Supply Ability : 5000

Delivery Time : 1-15 days

Packaging Details : Carton Box/Wooden Case

After Warranty Service : Online Support

OEM : Accept

Condition : 100% Brand-new

Quality : High-Quality

Application : Industrial Machinery

Selling Units : Single item

Contact Now

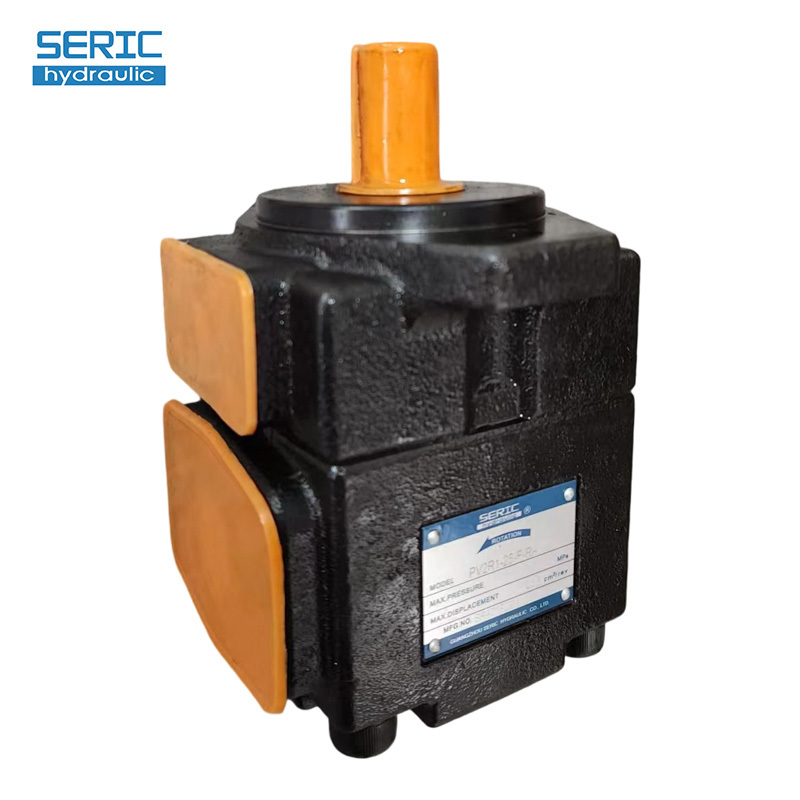

PV2R1 Single Vane Pumps High-performance Pump

Features

This model is a high-pressure, high-performance pump specifically developed for low noise operation.

To accommodate a wide range of applications such as injection molding machines, this pump features an extremely broad flow range of 5.8-237 cm³/rev. Additionally, the internal components of the pump are modular in design, facilitating maintenance.

Model Number Designation

PV2R1	-6	-L	-R	A	A	-43
Series Number	Nominal Displacement (cm³/rev)	Mounting Type	Rotation Direction	Outlet Position	Inlet Position	Design Number
PV2R1*	6, 8, 10, 12, 14, 17, 19, 23, 25, 31	L: Base Mounting Type F: Flange Mounting Type	[Viewed from Shaft Extension] R: Clockwise Direction (Standard)*	[Viewed from Shaft Extension] A: Upward (Standard)	[Viewed from Shaft Extension] A: Upward (Standard)	43
PV2R2*	41, 47, 53, 59, 65					41
PV2R3*	76, 94, 116					31
PV2R4*	136, 153, 184, 200, 237					30

Specifications

Model	Geometric Displacement (cm³/rev)	Maximum Operating Pressure (MPa)						Flow and Input Power	Speed Range (r/min)
		Petroleum-based Hydraulic Oil		Water-containing Hydraulic Fluid			Synthetic Hydraulic Fluid
		Anti-wear Oil	General Oil	AW Water-glycol Fluid*	Water-glycol Fluid	W/O Emulsion	Phosphate Ester Fluid		Max.	Min.
PV2R1 - 6	5.8	21*	16	16	7	7	16	Refer to Pages 180 - 182	1800(1200)	750*
PV2R1 - 8	8
PV2R1 - 10	9.4	21
PV2R1 - 12	12.2
PV2R1 - 14	13.7
PV2R1 - 17	16.6
PV2R1 - 19	18.6
PV2R1 - 23	22.7
PV2R1 - 25	25.3
PV2R1 - 31	31	16
PV2R2 - 41	41.3	21	14	16	7	7	14	Refer to Pages 182, 183	1800(1200)	600*
PV2R2 - 47	47.2
PV2R2 - 53	52.5
PV2R2 - 59	58.2
PV2R2 - 65	64.7
PV2R3 - 76	76.4	21	14	16	7	7	14	Refer to Pages 183, 184	1800(1200)	600
PV2R3 - 94	93.6
PV2R3 - 116	115.6	16							1800(1200)*
PV2R4 - 136	136	17.5	14	16	7	7	14	Refer to Pages 184, 185	1800(1200)	600
PV2R4 - 153	153
PV2R4 - 184	184
PV2R4 - 200	201
PV2R4 - 237	237								1800(1200)*
